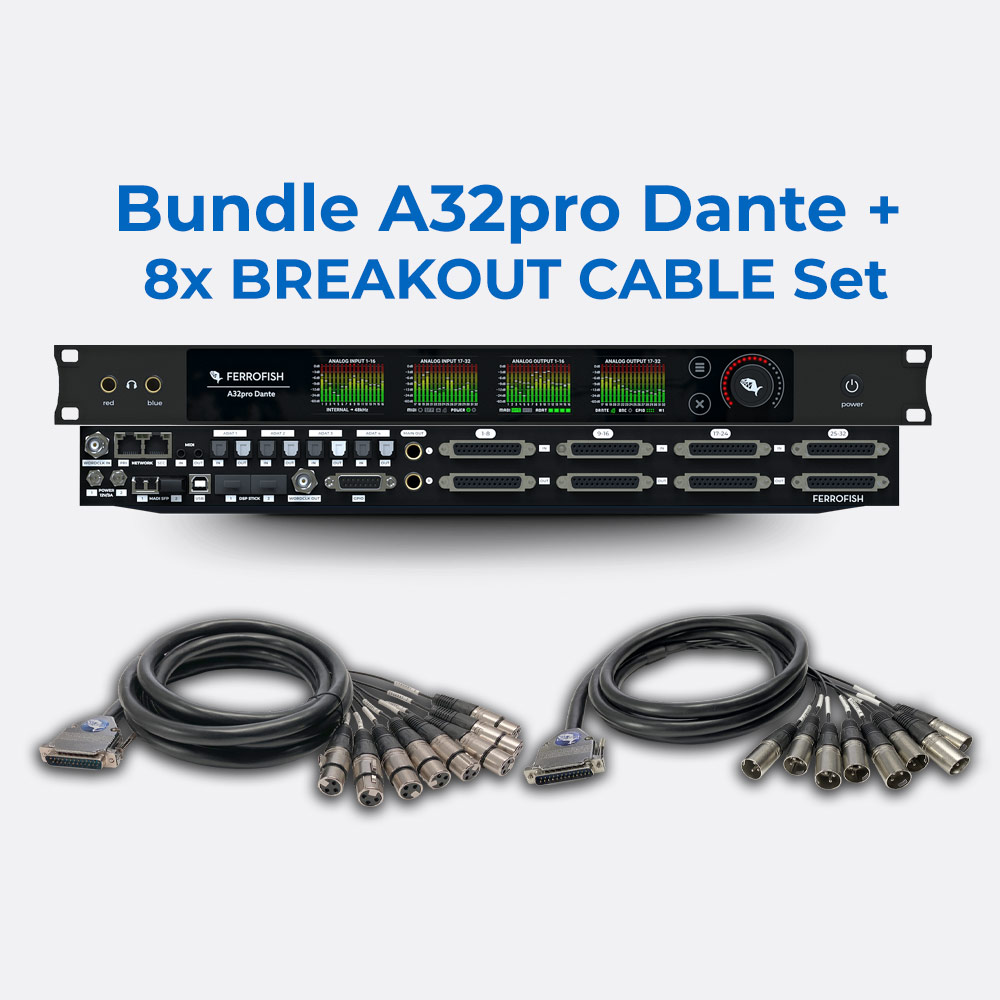

A32pro Dante + 8x Breakout Cables Bundle

Description

FERROFISH A32pro Dante  & 8x Breakout Cable Bundle – smart conversion and routing

This bundle consists of an A32pro Dante converter with a standard optical MADI SFP module and 8 breakout cables.

The A32pro Dante is based on a new modular hardware platform and is fully equipped with the most popular analog and digital interfaces. In addition to 32×32 studio-quality balanced analog inputs and outputs and stereo main out up to 192kHz, the A32pro Dante offers ADAT (32×32 channels) as well as MADI (64×64 channels) and Dante (64×64 channels) – probably the most widely used digital audio interfaces ever.

The highly integrated converter is housed in a compact 1U chassis and features 32×32 balanced analog channels output via eight d-Sub-25 connectors. They deliver studio levels up to +20dBu, individually adjustable in 1dB steps.

The sophisticated design with latest generation ESS converters, accompanied by a temperature compensated clock and jitter reduction PLL, guarantees the best crystal clear sound up to 192kHz. The A32pro is not only a converter, but thanks to its flexibility and a sophisticated routing matrix also a digital format converter for the integration of your existing and future MADI, ADAT or DANTE networks.



Features A32pro Dante

• 32×32 balanced analog I/O channels on d-Sub25 connectors, with a maximum I/O level of +20dBu
• Individually adjustable input gain and output level of all analog I/Os
• 64×64 channel Dante Brooklyn board integrated
• Automatic redundant slot switching in case of signal loss of an SFP module
• 32×32 ADAT I/O channels on TOSLINK connectors
• Two independent high-end heaphone outputs with sophisticated monitoring matrix
• Balanced 1/4″ TRS stereo output mirroring the red headphone output source
• 1x MADI SFP module multimode (standard module)
• GPIO port with 4 I/Os for external alarm monitoring and preset switching
• Preset management with eight renamable presets
• Almost all analog and digital inputs and outputs can be routed in groups of 8 channels

Scope of delivery A32pro Dante + 8x Breakout Cable Bundle

1x A32pro Dante
1x MADI SFP module multimode optical
4x FERROFISH cable whips d-Sub25 to XLR m or TRS
4x FERROFISH cable whips d-Sub25 to XLR f or TRS



After purchase we will contact you and you choose the type of breakout cables you need.
